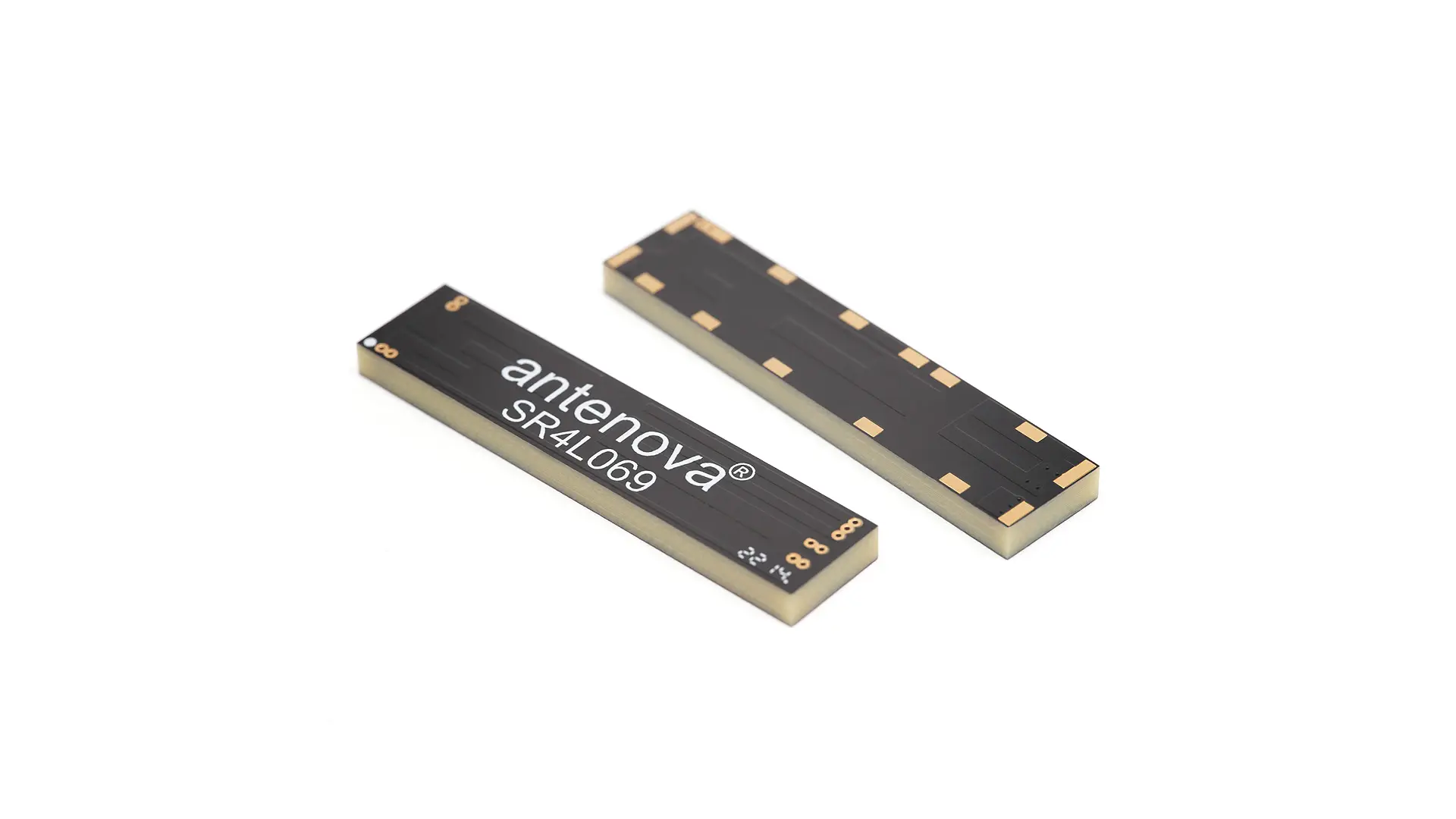

SR4L069 - Embedded 5G NR / Cellular / LPWA Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L069 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 45.0 × 10.0 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-824, 824-960, 1710-2200, 2300-2400, 2500-2690, 3300-3800 |
|---|---|
| Return Loss (dB) | ~-5.0, ~-5.5, ~-8.0, ~-8.5, ~-7.7, ~-8.0 |
| VSWR | ~3.6:1, ~3.3:1, ~2.3:1, ~2.2:1, ~2.4:1, ~2.3:1 |
| Efficiency (%) | ~45,~55,~66,~57,~63,~55 |
| Average Gain (dB) | ~-3.5,~-2.6,~-1.8,~-2.4,~-1.9,~-2.5 |
| Peak Gain (dBi) | ~-0.2,~1.6,~4.1,~3.4,~5.1,~5.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A multiband SMD antenna for 4G & 5G applications across the world. The antenna covers the most common 4G & 5G bands: B71 (617-698MHz), LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz), LTE B40 (2300 – 2400MHz) and 5G B78 (3300-3800MHz).
Key Features
Ground Plane Dependent
Wide band 5G Antenna
Full 4G LTE backward compatibility
Passive FR4 Chip Antenna
5.4 dBi 5G Peak Gain
up to 66% 5G Efficiency
617-3800 MHz Frequency Range
Applications
Smart Home
Wearables
Mobile Networks
Entertainment and Multimedia
IoT - Internet of Things
Logistics and Shipping
Smart Cities
Industrial IoT & Monitoring
Smart Farming
Fleet Management
Medical and Healthcare
Autonomous Driving
Drone Operation
Security and Surveillance
Gaming and Virtual Reality
Cellular Networks
Mission Critical Communications
Transportation
GIS - Geographic Information System
Cartographic
Hazard Mitigation
Machine Control
Automation
Agriculture
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Autonomous Applications
Mobile Applications
Automotive
Telecommunication
Data Processing
Broadband Communications
Remote Monitoring and Control
Smart Lighting
Government & Public Safety
Telemetry / Telematics
Video Streaming
Private Cellular Networks
Digital Signage
Routers
Gateways & Data Terminals
First Responder Fleets
C-V2X - Cellular Vehicle to Everything
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
