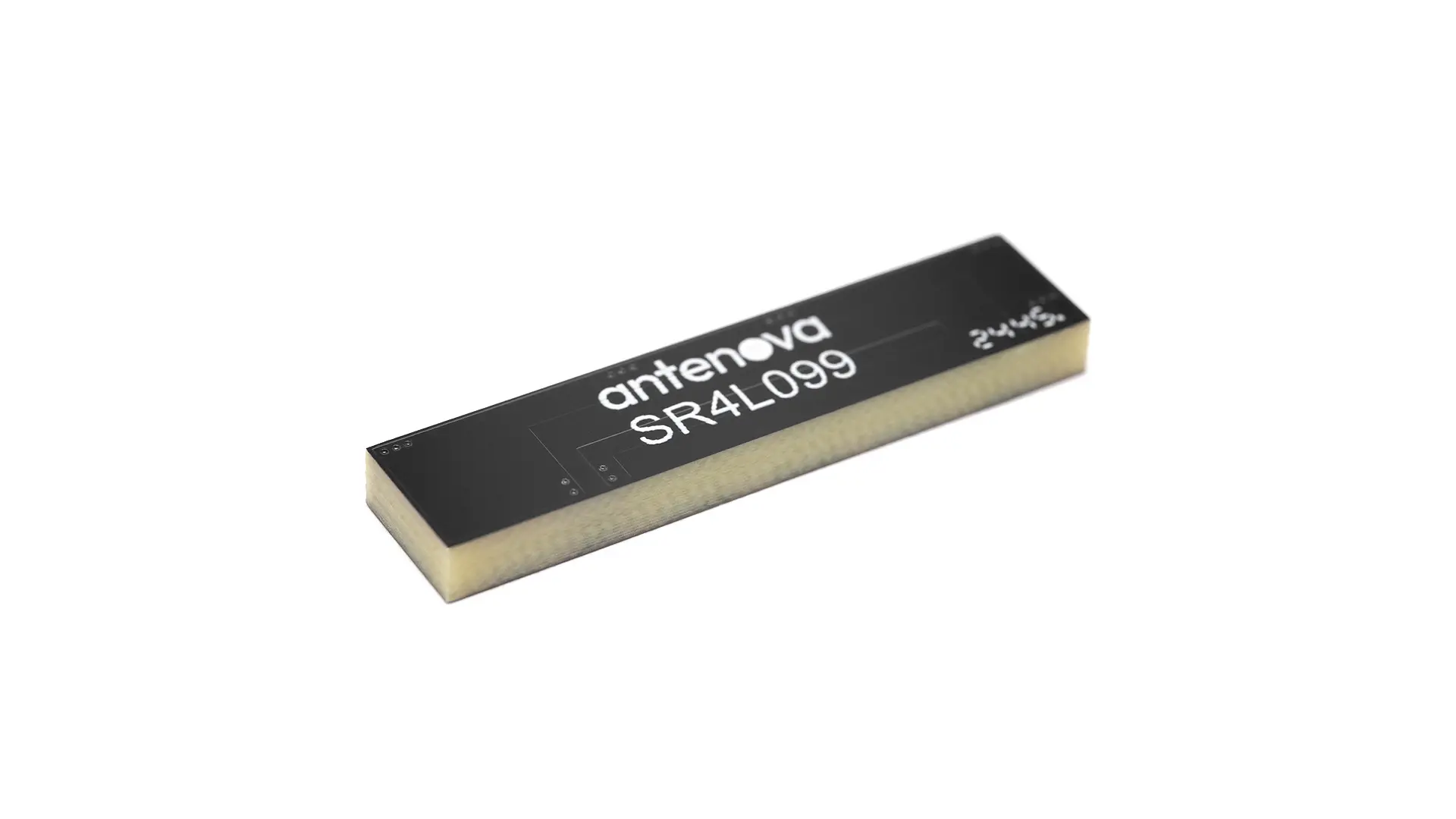

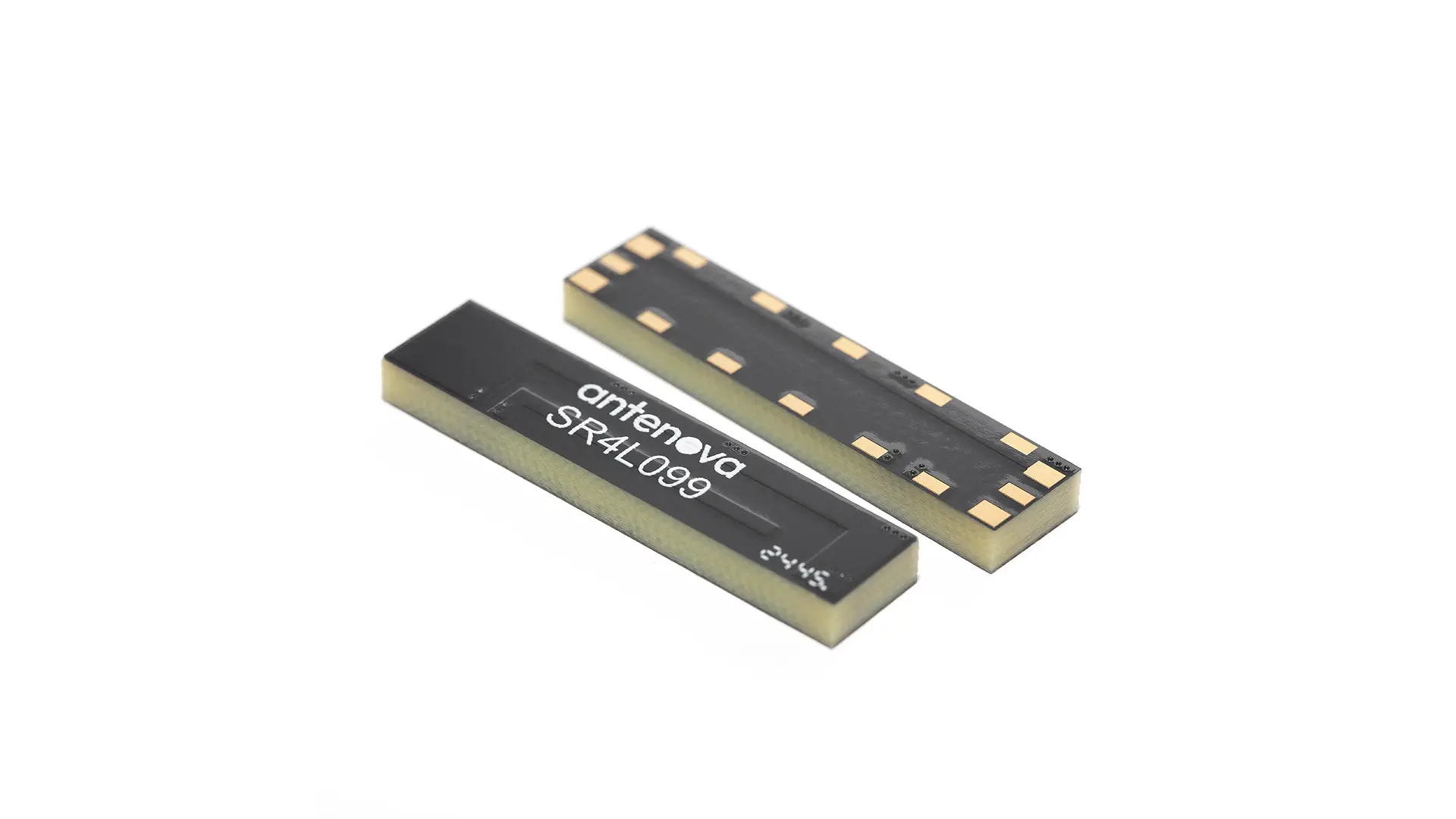

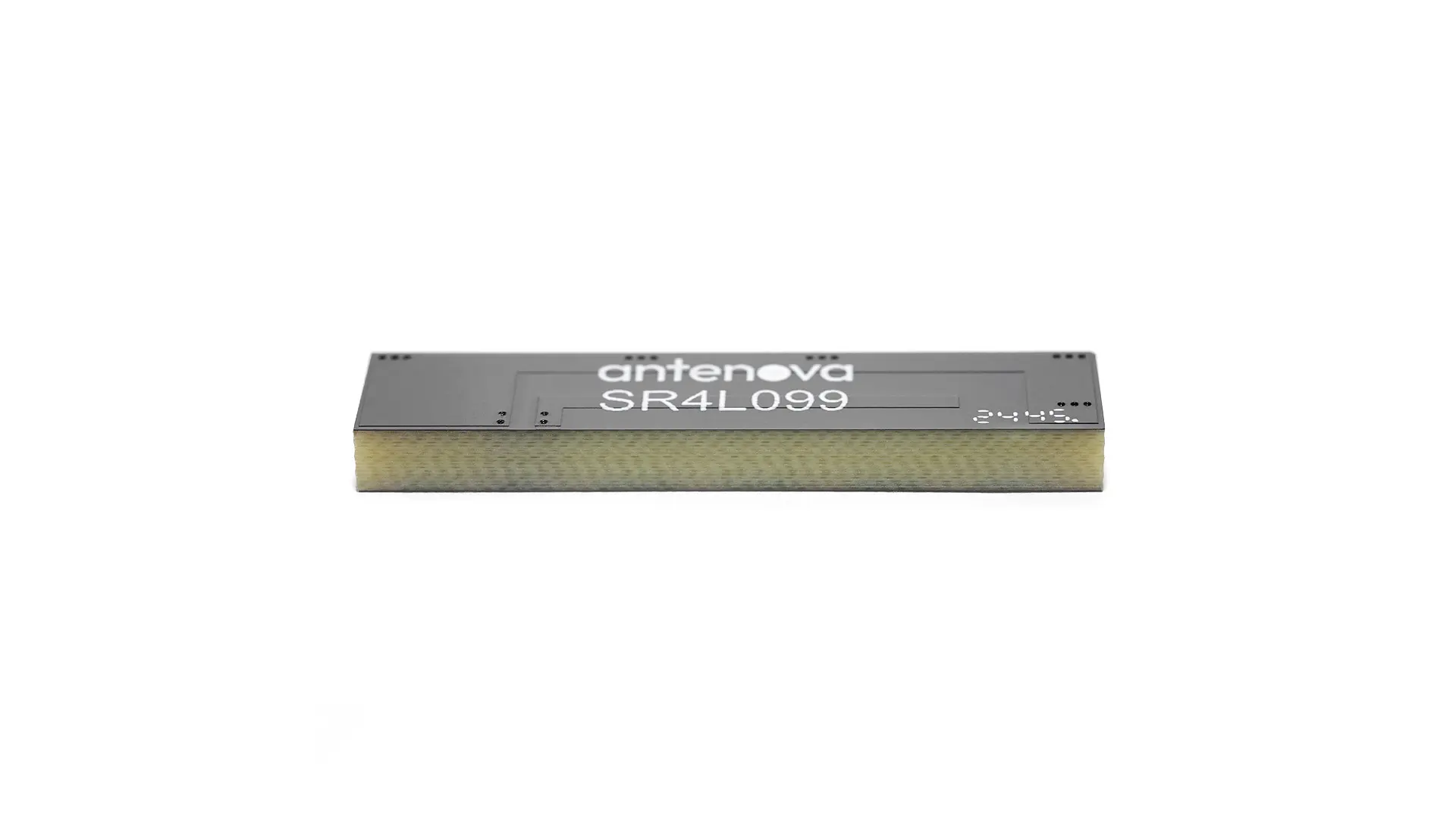

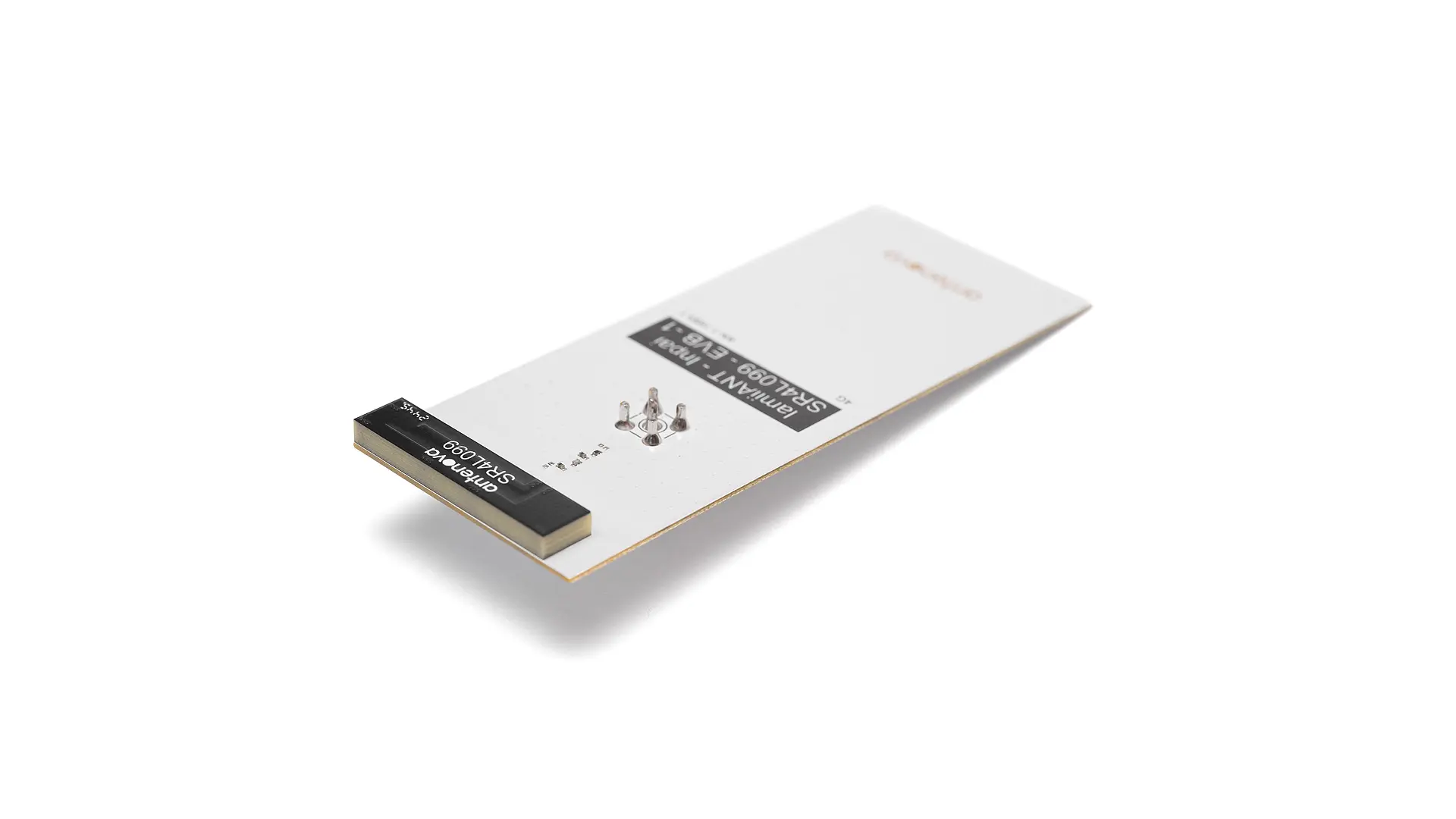

SR4L099 - Embedded 4G LTE / Cellular / LPWA / NB-IoT Passive FR4 Chip Surface Mount SMD Antenna
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | SMD Surface Mount Rigid |
|---|---|
| Product P/N | SR4L099 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 35 × 8 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.1, ~-6.2, ~-6.1, ~-3.9 |
| VSWR | ~3.5:1, ~2.9:1, ~2.9:1, ~4.4:1 |
| Efficiency (%) | ~48.75,~61.45,~68.68,~55.03 |
| Average Gain (dB) | ~-3.12,~-2.11,~-1.63,~-2.59 |
| Peak Gain (dBi) | ~0.15,~3.10,~3.58,~3.73 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |

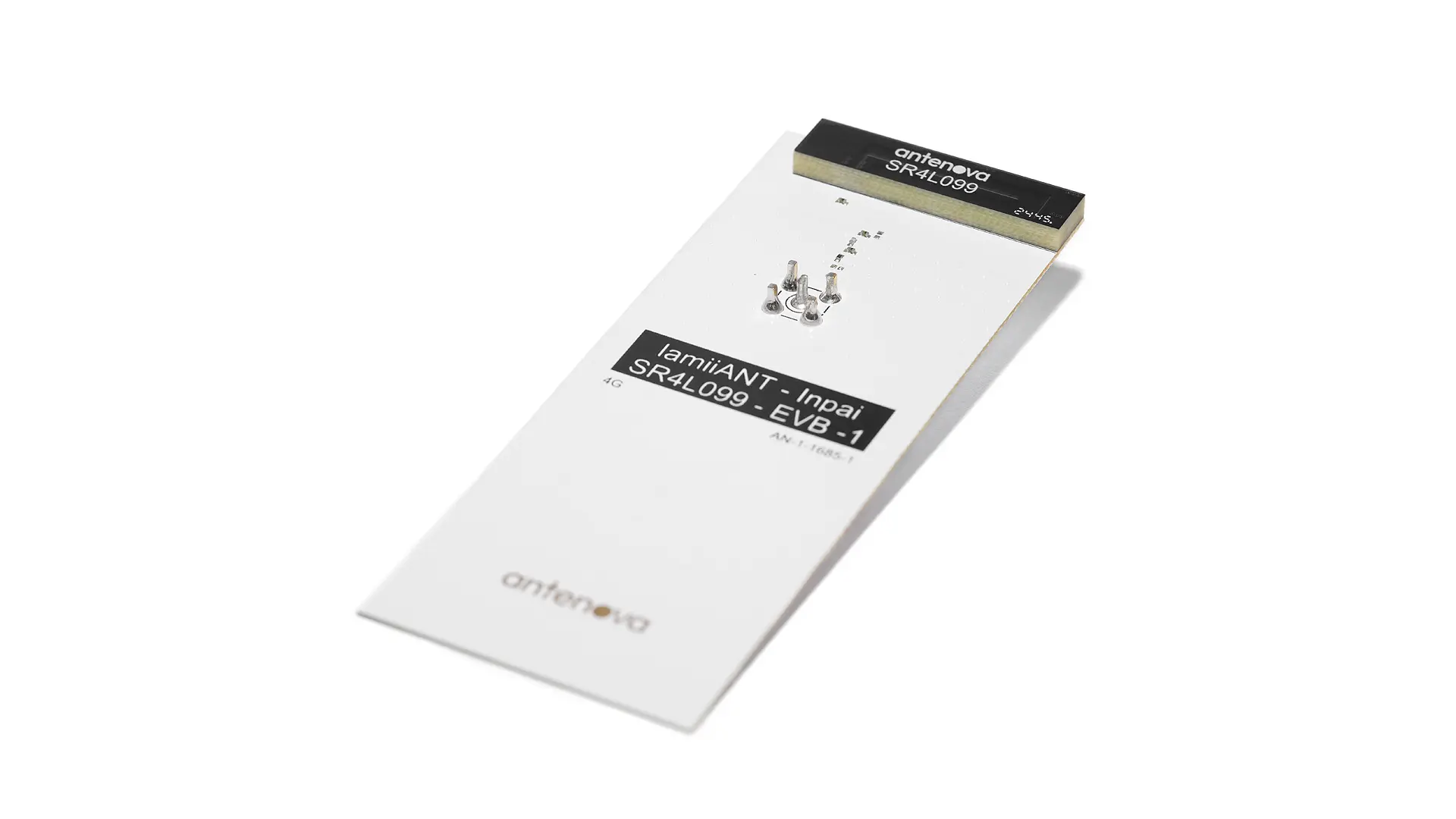

Antenna Description
Inpai is intended for use for 4G applications. This antenna is placed on the short edge of the host PCB and operates in the 4G bands worldwide. It is designed to meet the TRP requirements for all the networks in North America on a 100mm ground plane.
Key Features
Passive FR4 Chip Antenna
Ground Plane Dependent
Wide band 4G LTE Antenna
3.73 dBi 4G LTE Peak Gain
up to 68.68% 4G LTE Efficiency
698-2690 MHz Frequency Range
